Pre-requisites
- Open machine cover
- Type of LBPayLinker devices (Model NYJ or A1)
- Type of LBPayLinker wiring cable (BC, IA or TOSEI)

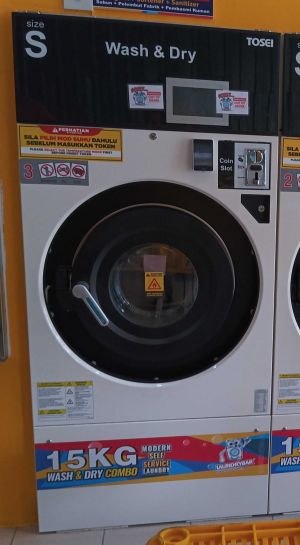

TOSEI Machine
Getting Started
- Make sure the LBPayLinker model Type. See picture.
 |
 |
|---|
2. Check LBPayLinker parts.
- For model NYJ31 - antenna and machine wiring cable
- For model A1 - interface cable and machine wiring cable
 |
 |
|---|
3. Connect the interface cable on the device.
 |
 |
|---|
4. Open Tosei machine cover.
5. Locate power connector and disconnect it to shutdown the machine.
6. Locate coindrop interface cable to machine board.
7. Locate LBPayLinker machine wiring cable.
(1) Connect to the TOSEI board
(2) Connect to the TOSEI interface cable
8. Connect machine wiring cable Tosei type to coindrop - board cable.
(1) Disconnect TOSEI interface cable from the board and connect it to the LBPayLinker wiring connector slot.
(2) Connect LBPayLinker wiring connector to the TOSEI board.
9. Connect machine power source connector to the board.
10. After installation, TOSEI screen will display error "Please use another machine".
This indicate the device need to change the setting parameter for the machine. Next step is to configure the LBPayLinker device app through admin app. Configure device using admin app
Installation video
Click link below to view installation video.
