BC machine (washer and dryer) install

Pre-requisites

• Open machine cover
• Type of LBPayLinker devices (Model NYJ or A1)
• Type of LBPayLinker wiring cable (BC, IA or TOSEI)

BC Machine

This is the washer and dryer type of machine.

BC Washer and Dryer

Getting Started

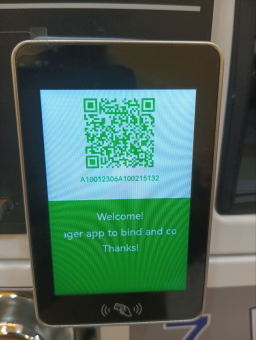

1. Make sure the LBPayLinker model Type. See picture.

Device Model

NYJ31	A1

2. Check LBPayLinker parts.

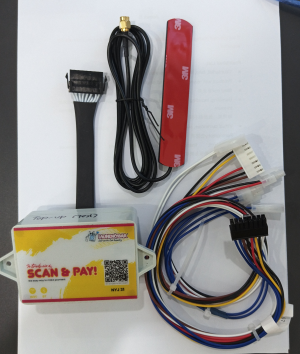

• For model NYJ31 - antenna and machine wiring cable

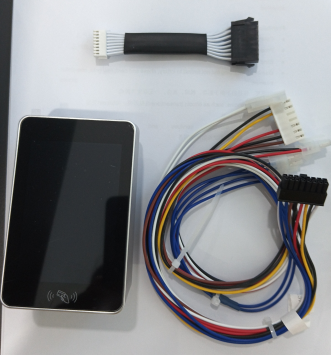

• For model A1 - interface cable and machine wiring cable

NYJ31	A1

3. Connect the interface cable on the device.

* for device NYJ31 connect wifi antenna cable and machine wiring cable as picture above.

* for device A1 connect interface cable and machine wiring cable as picture above

4. Open BC machine cover.

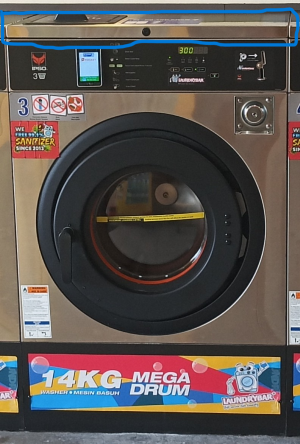

open board cover	open top cover	open coindrop cover

5. Locate power connector and disconnect it to shutdown the machine.

6. Locate coindrop interface cable to machine board.

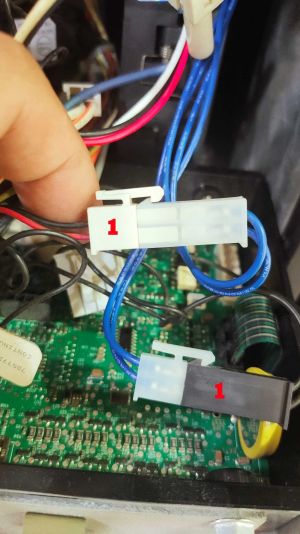

(1) Coindrop power to board

(2) Coindrop signal to board

7. Locate LBPayLinker machine wiring cable.

8. Connect machine wiring cable BC type to coindrop - board cable.

(1) Disconnect coindrop power to board cable and loop with LBPayLinker wiring cable.

(2) Disconnect coindrop signal to board cable and loop with LBPayLinker wiring cable. There are 2 signal pair, yellow-white and red-black. Use red-black signal pair.

9. Connect machine power source connector to the board.

10. After the device done installation, next step is to configure the device. Configure device using admin app

Installation video

Installation steps video.

https://lbunlimitedwash.com/lbwiki/video/BC_Device_installation.mp4
